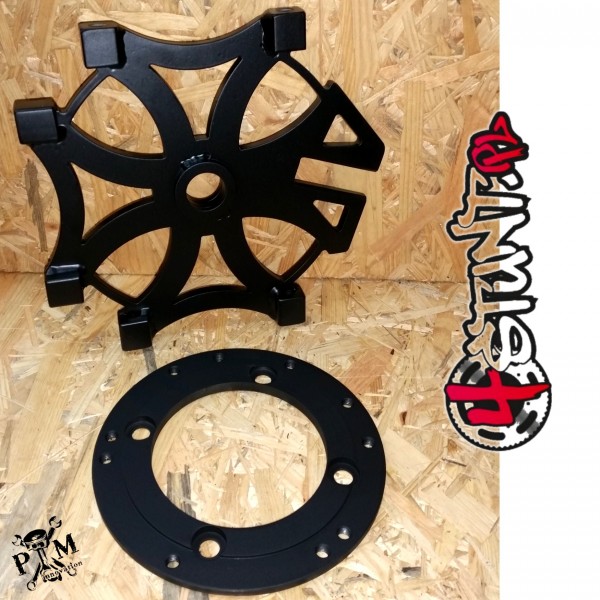

05-12 Kawasaki 636 cross style big rotor kit

05-12 Kawasaki 636 cross style big rotor kit

05-12 Kawasaki 636 cross style big rotor kit

More details


400,00 zł tax incl.

Availability: 14 days

2005-2012 Kawasaki 636 (ZX6R) handbrake bracket and adapter for bigger disc. This HB bracket uses 3 front radial calipers from:

Suzuki K6, K7, K8, K9, L0, L1

With 9mm spacers: Suzuki K4, K5 or Kawasaki 636
With 16mm spacers: CBR 600rr or 1000rr

You can also use Yamaha calipers.



With adapter you can install stock front disc:

Outer diameter: 298mm

Inne diameter: 132mm

Thickness: 5mm

Number of holes: 6

Hole diameter: 8,5mm

- XJ 600     1998' - 2003'
- YZF-R6      1999' - 2002'
- YZF 600 R     1996' - 2007'
- TDM 900     2002' - 2007'
- FZS 1000     2001' - 2005'
- YZF-R1 1000    1998' - 2003'
- YZF 1000 R     1996' - 2001'
- BT 1100      2002' - 2006'
- XVS 1100  V-STAR  CLASSIC A     2004' - 2008'
- FJR 1300      2001' - 2002'
- XJR 1300      1999' - 2004'
- XVS 1300     2007' - 2008'
- XV 1700     2004' - 2007'
- XV 1700      2002' - 2008'
- XV 1900      2006' - 2007'



You can also order adapter for disc:

Inne diameter: 132mm

Number of holes: 5

Hole diameter: 8,5mm



298mm disc from:

YAMAHA - 600 - YZF 600 R 6 - 2003 / 2004
YAMAHA - 600 - FZ 600 / FAZER / S2 - 2004 / 2008
YAMAHA - 600 - FZ 600 N, NS - 2004 / 2005
YAMAHA - 600 - FZ 600 N, NS - 2006
YAMAHA - 600 - XJ6 F / ABS - 2012
YAMAHA - 660 - MT03 660 - 2006 / 2011

310mm from:
YZF R6 06-07
YZF R6 (13S1) 08-11
YZF R1 (6 piston radial caliper) 07-08
YZF R1 09-11

320mm from:
YZF 1000 R1  `04 - `06
FZ1-N / FZ1-NV 1000 `06 - `11
FZ1-S / FZ1-SV 1000  `06 - `11
FZ1 Fazer 1000  `06 - `11


Customer have to write what calipers and brake disc he will be using!
