03-04 636 2xRadial HB kit

2003-2004 Kawasaki 636 ZX6R handbrake kit. Made of steel. It uses 2 front radial brake calipers from:

Suzuki K6, K7, K8, K9, L0, L1

With 9mm spacers: Suzuki K4, K5 or Kawasaki 636
With 16mm spacers: CBR 600rr or 1000rr

You can also use Yamaha calipers.

With adapter you can install stock front disc:

Outer diameter: 298mm

Inne diameter: 132mm

Thickness: 5mm

Number of holes: 6

Hole diameter: 8,5mm

- XJ 600     1998' - 2003'
- YZF-R6      1999' - 2002'
- YZF 600 R     1996' - 2007'
- TDM 900     2002' - 2007'
- FZS 1000     2001' - 2005'
- YZF-R1 1000    1998' - 2003'
- YZF 1000 R     1996' - 2001'
- BT 1100      2002' - 2006'
- XVS 1100  V-STAR  CLASSIC A     2004' - 2008'
- FJR 1300      2001' - 2002'
- XJR 1300      1999' - 2004'
- XVS 1300     2007' - 2008'
- XV 1700     2004' - 2007'
- XV 1700      2002' - 2008'
- XV 1900      2006' - 2007'

You can also order adapter for disc:

Inne diameter: 132mm

Number of holes: 5

Hole diameter: 8,5mm

298mm disc from:

YAMAHA - 600 - YZF 600 R 6 - 2003 / 2004
YAMAHA - 600 - FZ 600 / FAZER / S2 - 2004 / 2008
YAMAHA - 600 - FZ 600 N, NS - 2004 / 2005
YAMAHA - 600 - FZ 600 N, NS - 2006
YAMAHA - 600 - XJ6 F / ABS - 2012
YAMAHA - 660 - MT03 660 - 2006 / 2011

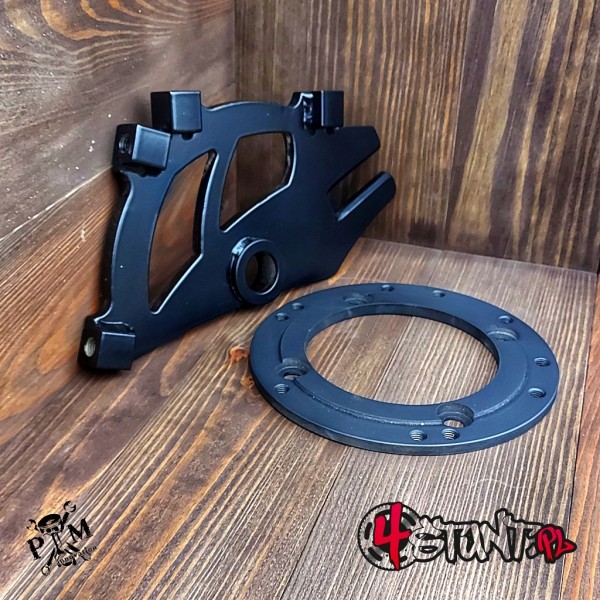

Kit includes HB bracket, disc adapter and install hardware.
