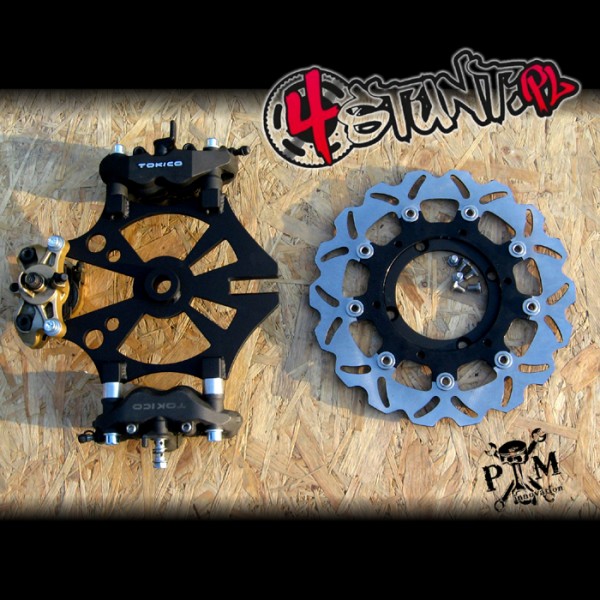

2xRadial + K4 FB big rotor kit for Honda F4i

Honda F4 / F4i / F4i Sport handbrake bracket and adapter for bigger disc. This handbrake bracket uses 2 radial calipers from:

Suzuki K6, K7, K8, K9, L0, L1

With 9mm spacers you can use calipers from: Suzuki K4, K5 or Kawasaki 636
With 16mm spacers you can use calipers from: Honda 600RR or 1000RR

You can also use Yamaha calipers.

For footbrake it uses rear caliper from Suzuki K4,K5; Suzuki Bandit 650/1250 2005 - 2010.

With adapter you can install stock front disc from:

Outer diameter: 298mm

Inne diameter: 132mm

Thickness: 5mm

Number of holes: 6

Hole diameter: 8,5mm

- XJ 600     1998' - 2003'
- YZF-R6      1999' - 2002'
- YZF 600 R     1996' - 2007'
- TDM 900     2002' - 2007'
- FZS 1000     2001' - 2005'
- YZF-R1 1000    1998' - 2003'
- YZF 1000 R     1996' - 2001'
- BT 1100      2002' - 2006'
- XVS 1100  V-STAR  CLASSIC A     2004' - 2008'
- FJR 1300      2001' - 2002'
- XJR 1300      1999' - 2004'
- XVS 1300     2007' - 2008'
- XV 1700     2004' - 2007'
- XV 1700      2002' - 2008'
- XV 1900      2006' - 2007'

With different adapter you can also install disc from:

Inne diameter: 132mm

Number of holes: 5

Hole diameter: 8,5mm

298mm disc from:

YAMAHA - 600 - YZF 600 R 6 - 2003 / 2004
YAMAHA - 600 - FZ 600 / FAZER / S2 - 2004 / 2008
YAMAHA - 600 - FZ 600 N, NS - 2004 / 2005
YAMAHA - 600 - FZ 600 N, NS - 2006
YAMAHA - 600 - XJ6 F / ABS - 2012
YAMAHA - 660 - MT03 660 - 2006 / 2011

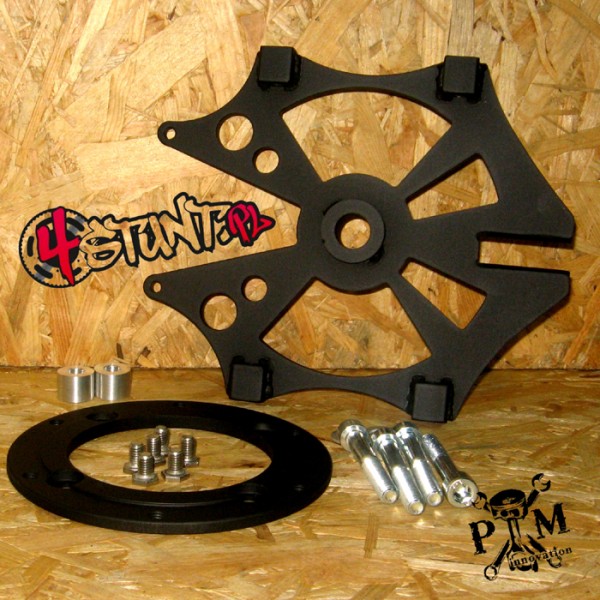

Kit includes handbrake bracket, adapter and all the mounting hardware.

Customer have to write which calipers and adapter he want to use.
