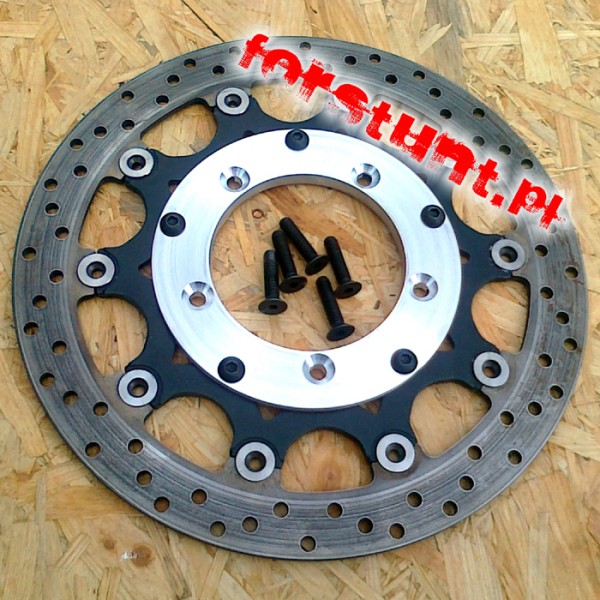

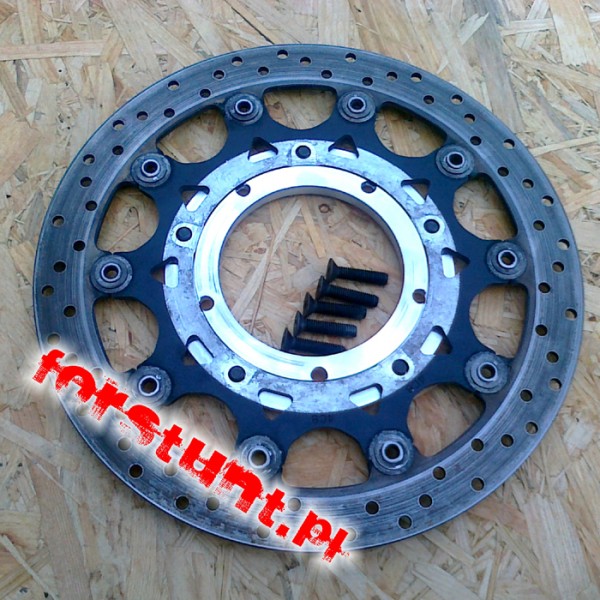

Yamaha 298 / 310 / 320 mm disc adapter

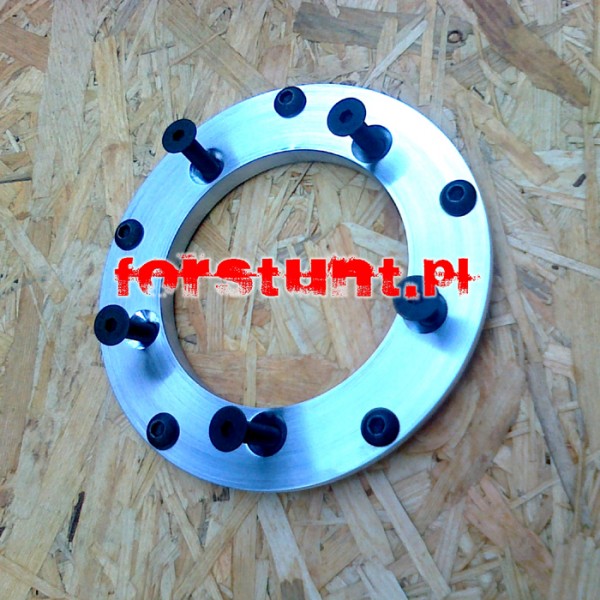

Yamaha disc adapter (inner diameter 105mm, mounting five holes on 115mm diameter)
After screwing the adapter and the wheel to the rear wheel back you get 6mm from the center of the circle. Adapting ventilated disc of larger diameter significantly improves braking performance. Large rear wheel is less susceptible to wear, overheating and cracking.
Possibility to mount disks:
inner diameter: 132mm
Holes: 5
hole diameter: 8.5 mm

298mm disc fits of models:
YAMAHA - 600 - YZF 600 R6 - 2003/2004
YAMAHA - 600 - FZ 600 / FAZER / S2 - 2004/2008
YAMAHA - 600 - FZ 600 N, NS - 2004/2005
YAMAHA - 600 - FZ 600 N, NS - 2006
YAMAHA - 600 - F XJ6 / ABS - 2012
YAMAHA - 660 - MT03 660 - 2006/2011

310mm disc fits of models:
YZF R6 06-07
YZF R6 (13S1) 08-11
YZF R1 (6 piston radial caliper) 07-08
YZF R1 09-11

320mm disc fits of models:
YZF 1000 R1 `04 -` 06
FZ1-N / FZ1-NV 1000 `06 -` 11
FZ1-S / FZ1-SV 1000 `06 -` 11
FZ1 Fazer 1000 `06 -` 11
